Casting Cast Aluminum Transfer Printing Machine Heater Heating Plate Element

Casting Cast Aluminum Transfer Printing Machine Heater Heating Plate Element

Casting Heater combine top quality tubular heaters and high thermal conductivity non-ferrous alloys. Modern foundry techniques ensure a dense, porosity free casting. After casting the heaters are machined to ensure a close contact on the working surface. Cast In heaters can be supplied with...
Product description



Product Name

Electric casting aluminum heating plate for heat press machine

Usage

Normal temperature 350 degree,max 400 degree

Brand

BENO

Power

2.5-6W/cm2 or customized

Sheath Material

Aluminum/Brass/Iron

Heating wire

Ni-Cr or Fe-Cr

Shape

round, flat, rectangular, square,air-cooled, water-cooled and other shapes

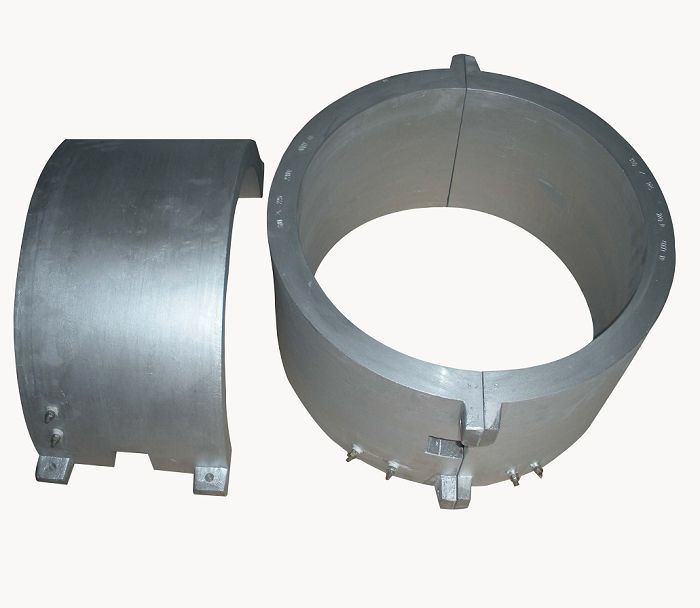

Casting Heater combine top quality tubular heaters and high thermal conductivity non-ferrous alloys. Modern foundry techniques ensure a dense, porosity free casting. After casting the heaters are machined to ensure a close contact on the working surface. Cast In heaters can be supplied with clamping straps or with built in clamping means.

It is a tubular electric heating element for heating body, and bending molding, into the mold with high quality metal alloy material into various shapes, round, flat, rectangular, air-cooled, water-cooled and other shapes . After finishing it and heated body tightly, Metal casting heater is a kind of high efficiency heat uniformity division of the heater, thermal conductivity, excellent metal alloy, ensure the hot surface temperature uniformity, eliminating equipment hot and cold spots. With long life, good insulation properties, mechanical properties, corrosion resistance, magnetic resistance etc.


Application for Casting Heaters

1,Injection and Blow Mould

2,Extruders

3,Mould & Dies

4,Packaging machinery

5,Lab equipment

6,Medical equipment

7,Thermo forming equipment


1.Use condition: environment temperature -20~+400°C,

2.Relative temperature <80%

3.Leakage current:<0.5MA

4.Insulation resistance:≥100M

5.Voltage resistance: no electric breakdown for 1 minute under 1500V

6.Temperature endurance:450°C

7.Power deviation:+5%-10%


Type

Size



BN-220x270

220x270MM

110V~380V

BN-290x380

290x380MM

110V~380V

BN-380x380

380x380MM

110V~380V

BN-380x450

380x450MM

110V~380V

BN-400x500

400x500MM

110V~380V

BN-400x600

400x600MM

110V~380V

BN-500x600

500x600MM

110V~380V

BN500x700

500x700MM

110V~380V

BN-600x800

600x800MM

110V~380V

BN-800x1000

800x1000MM

110V~380V

BN1000x1200

1000x1200MM

110V~380V

BN1000x1500

1000x1500MM

110V~380V

Remark: Generally Speaking, we will manufacture it according to your require. If you have sample or drawing, the products Can be customized













We Will send the sample to you for free. you can test our quality.
