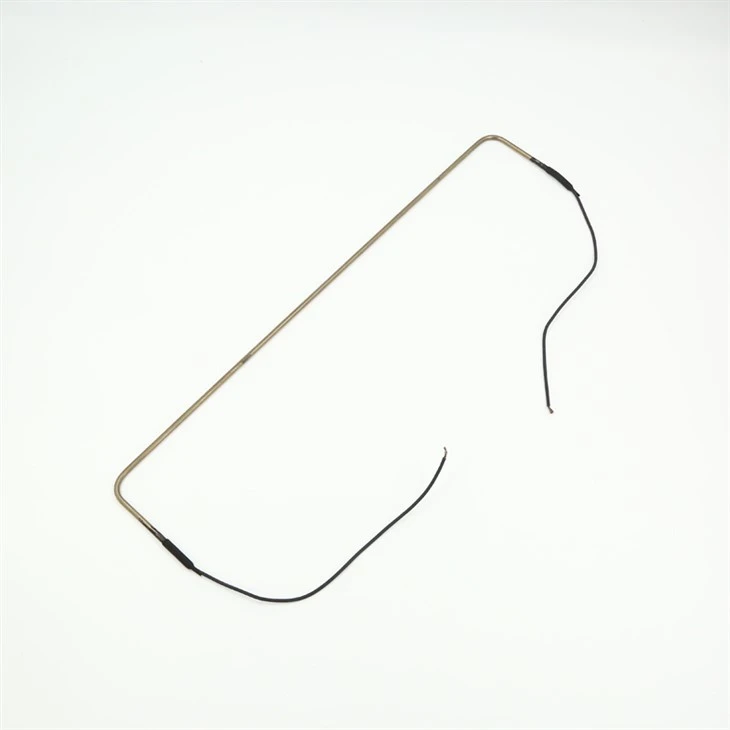

Stainless Steel Defrost Freezer Air Cooler Cold Storage Cooler Unit Heating Tube

Stainless Steel Defrost Freezer Air Cooler Cold Storage Cooler Unit Heating Tube

Defrost heating element Defrosting heating element is designed for defrosting hard of various kinds of freezer, refrigerator. It is adopted the stainless steel as the base material. Any shape to the user’s requirements This properties of the product are defrosted effectually, The insulating...
Product description



Defrost heating element


Defrosting heating element is designed for defrosting hard of various kinds of freezer, refrigerator. It is adopted the stainless steel as the base material. Any shape to the user’s requirements This properties of the product are defrosted effectually, The insulating resistance is excellent , corrosion-resistant, resist and wear out ,It is safe and reliable to carry the sealed dampproof performance of the end which obtained the national patent. The quality indexes of the products and technical indicator are all better than JB/T2379-93 standard.


1. Defrosting Heating Element is Apply in Refrigerator, Freezer , Evaporator ,Unit cooler , Condenser.

2. The material of tube is Incoloy840, 800, stainless steel 304, 321, 310S, aluminum.

3. The diameter of tube is 6.5 mm, 8 mm,  8.5mm,9mm,10mm,11mm& 12mm, 14mm,16mm and so on.

4. Ambient temperature: -60°C ~ +125°C

5. High- voltage in Test : 16,00V/ 5S

6. Firmness of connection end: ≥50N

7. High temperature molded Neoprene

8. Can be manufactured to proper length


1.Insulation resistance:500MΩ

2.Leakage current to be 0.5ma max While energized at rated voltage

3.Power tolerance:+5%,-10%

4.Voltage:12V-440V

5.Diameter range:4.5mm to 20mm

6.Heating resistance wire:0Cr25Al5,Cr20Ni80 or as custom'es requirement

7.Air tubular heater wattage : ≥ 1w-5w/cm2


Defrost heating element for air cooler and freezer



Material of tube:

AISI304 321,316 Incoloy840

Voltage:

110V-480V

Diameter of tube

6.5, 8, 8.5, 9,10, 11,12mm

Power

200W-3500W


Some Type of BN-A

Type No.

A(MM)

Power(W)

ф D1(MM)

L(MM)

фD2(MM)

BN-A-500

500

200W

6.5, 8, 8.5, 9,10,11,12mm

700mm

  1. D1=6.5mm

  2. D1=6.5mm

  3. D1= 8mm

  4. D1=8.5mm

  5. D1=9mm

  6. D1=10mm

  7. D1=11mm

  8. D1=12mm



D2=8mm
D2=8mm
D2=9.5mm
D2=9.5mm
D2=10mm
D2 =16mm
D2=16mm
D2=16mm

BN-A-1000

1000

400W

6.5, 8, 8.5, 9,10,11,12mm

700mm

BN-A-1500

1500

550W

6.5, 8, 8.5, 9,10,11,12mm

700mm

BN-A-2000

2000

700W

6.5, 8, 8.5, 9,10,11,12mm

700mm

BN-A-2500

2500

850W

8, 8.5, 9,10,11,12mm

700mm

BN-A-3000

3000

1050W

8, 8.5, 9,10,11,12mm

700mm

BN-A-3500

3500

1250W

8, 8.5, 9,10,11,12mm

700mm

BN-A-4000

4000

1400W

8, 8.5, 9,10,11,12mm

700mm

BN-A-5000

5000

1750W

8, 8.5, 9,10,11,12mm

700mm

BN-A-6000

6000

2100W

8, 8.5, 9,10,11,12mm

700mm


TYPE: BN-AA


Material of tube:

AISI304 321,316 Incoloy840

Voltage:

110V-480V

Diameter of tube

6.5, 8, 8.5, 9,10, 11,12mm

Power

200W-3500W


Some Type of BN-AA

Type No.

A(MM)

Power(W)

ф D1(MM)

B(MM)

фD2(MM)

BN-AA-500

500

400W

6.5, 8, 8.5, 9,10,11,12mm

300mm

1.D1=6.5mm
2.D1=6.5mm
3.D1= 8mm
4.D1=8.5mm5.D1=9mm 6.D1=10mm 7.D1=11mm 8.D1=12mm

D2=8mm
D2=8mm
D2=9.5mm
D2=9.5mm

D2=10mm
D2 =16mm
D2=16mm
D2=16mm

BN-AA-1000

1000

800W

6.5, 8, 8.5, 9,10,11,12mm

300mm

BN-AA-1500

1500

1100W

6.5, 8, 8.5, 9,10,11,12mm

300mm

BN-AA-2000

2000

1400W

6.5, 8, 8.5, 9,10,11,12mm

300mm

BN-AA-2500

2500

1600W

8, 8.5, 9,10,11,12mm

300mm

BN-AA-3000

3000

2100W

8, 8.5, 9,10,11,12mm

300mm

BN-AA-3500

3500

2250W

8, 8.5, 9,10,11,12mm

300mm

BN-AA-4000

4000

2800W

8, 8.5, 9,10,11,12mm

300mm

BN-AA-5000

5000

3400W

8, 8.5, 9,10,11,12mm

300mm

BN-AA-6000

6000

4000W

8, 8.5, 9,10,11,12mm

300mm


TYPE: BN-U

Material of tube:

AISI304 321,316 Incoloy840

Voltage:

110V-480V

Diameter of tube

6.5, 8, 8.5, 9,10, 11,12mm

Power

200W-3500W


Some Type of BN-U

Type No.

A(MM)

Power(W)

ф D1(MM)

L(MM)

фD2(MM)

BN-U-500

500

400W

6.5, 8, 8.5, 9,10,11,12mm

108mm

1.D1=6.5mm
2.D1=6.5mm
3.D1= 8mm
4.D1=8.5mm
5.D1=9mm 6.D1=10mm
7.D1=11mm
8.D1=12mm

D2=8mm
D2=8mm
D2=9.5mm
D2=9.5mm
D2=10mm
D2 =16mm
D2=16mm
D2=16mm

BN-U-800

800

640W

6.5, 8, 8.5, 9,10,11,12mm

108mm

BN-U-1000

1000

800W

6.5, 8, 8.5, 9,10,11,12mm

108mm

BN-U-1200

1200

900W

8, 8.5, 9,10,11,12mm

108mm

BN-U-1500

1500

1100W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2000

2000

1400W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2500

2500

1600W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2800

2800

1900W

8, 8.5, 9,10,11,12mm

108mm

BN-U-3000

3000

2100W

8, 8.5, 9,10,11,12mm

108mm


TYPE: BN-UB


Material of tube:

AISI304 321,316 Incoloy840

Voltage:

110V-480V

Diameter of tube

6.5, 8, 8.5, 9,10, 11,12mm

Power

200W-3500W


Some Type of BN-B

Type No.

A(MM)

Power(W)

ф D1(MM)

L(MM)

фD2(MM)

BN-U-500

500

400W

6.5, 8, 8.5, 9,10,11,12mm

108mm

1.D1=6.5mm
2.D1=6.5mm
3.D1= 8mm
4.D1=8.5mm
5.D1=9mm
6.D1=10mm
7.D1=11mm
8.D1=12mm

D2=8mm
D2=8mm
D2=9.5mm
D2=9.5mm
D2=10mm
D2 =16mm
D2=16mm
D2=16mm

BN-U-800

800

640W

6.5, 8, 8.5, 9,10,11,12mm

108mm

BN-U-1000

1000

800W

6.5, 8, 8.5, 9,10,11,12mm

108mm

BN-U-1200

1200

900W

8, 8.5, 9,10,11,12mm

108mm

BN-U-1500

1500

1100W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2000

2000

1400W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2500

2500

1600W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2800

2800

1900W

8, 8.5, 9,10,11,12mm

108mm

BN-U-3000

3000

2100W

8, 8.5, 9,10,11,12mm

108mm


TYPE: BN-B


Material of tube:

AISI304 321,316 Incoloy840

Voltage:

110V-480V

Diameter of tube

6.5, 8, 8.5, 9,10, 11,12mm

Power

200W-3500W


Some Type of BN-B

Type No.

A(MM)

Power(W)

ф D1(MM)

L(MM)

фD2(MM)

BN-B-500

500

200W

6.5, 8, 8.5, 9,10,11,12mm

700mm

1.D1=6.5mm
     2.D1=6.5mm
     3.D1= 8mm
     4.D1=8.5mm
     5.D1=9mm
     6.D1=10mm
     7.D1=11mm  8.D1=12mm

D2=8mm
     D2=8mm
     D2=9.5mm
     D2=9.5mm
     D2=10mm
     D2 =16mm
     D2=16mm
     D2=16mm

BN-B-1000

1000

400W

6.5, 8, 8.5, 9,10,11,12mm

700mm

BN-B-1500

1500

550W

6.5, 8, 8.5, 9,10,11,12mm

700mm

BN-B-2000

2000

700W

6.5, 8, 8.5, 9,10,11,12mm

700mm

BN-B-2500

2500

850W

8, 8.5, 9,10,11,12mm

700mm

BN-B-3000

3000

1050W

8, 8.5, 9,10,11,12mm

700mm

BN-B-3500

3500

1250W

8, 8.5, 9,10,11,12mm

700mm

BN-B-4000

4000

1400W

8, 8.5, 9,10,11,12mm

700mm

BN-B-5000

5000

1750W

8, 8.5, 9,10,11,12mm

700mm

BN-B-6000

6000

2100W

8, 8.5, 9,10,11,12mm

700mm


TYPE: BN-BB


Material of tube:

AISI304 321,316 Incoloy840

Voltage:

110V-480V

Diameter of tube

6.5, 8, 8.5, 9,10, 11,12mm

Power

200W-3500W


Some Type of BN-BB

Type No.

A(MM)

Power(W)

ф D1(MM)

L(MM)

фD2(MM)

BN-B-500

500

200W

6.5, 8, 8.5, 9,10,11,12mm

700mm

1.D1=6.5mm
2.D1=6.5mm
3.D1= 8mm
4.D1=8.5mm
5.D1=9mm
6.D1=10mm
7.D1=11mm 8.D1=12mm

D2=8mm
D2=8mm
D2=9.5mm
D2=9.5mm
D2=10mm
D2 =16mm
D2=16mm
D2=16mm

BN-B-1000

1000

400W

6.5, 8, 8.5, 9,10,11,12mm

700mm

BN-B-1500

1500

550W

6.5, 8, 8.5, 9,10,11,12mm

700mm

BN-B-2000

2000

700W

6.5, 8, 8.5, 9,10,11,12mm

700mm

BN-B-2500

2500

850W

8, 8.5, 9,10,11,12mm

700mm

BN-B-3000

3000

1050W

8, 8.5, 9,10,11,12mm

700mm

BN-B-3500

3500

1250W

8, 8.5, 9,10,11,12mm

700mm

BN-B-4000

4000

1400W

8, 8.5, 9,10,11,12mm

700mm

BN-B-5000

5000

1750W

8, 8.5, 9,10,11,12mm

700mm

BN-B-6000

6000

2100W

8, 8.5, 9,10,11,12mm

700mm


TYPE: BN-OB


Material of tube:

AISI304 321,316 Incoloy840

Voltage:

110V-480V

Diameter of tube

6.5, 8, 8.5, 9,10, 11,12mm

Power

200W-3500W


Some Type of BN-U

Type No.

A(MM)

Power(W)

ф D1(MM)

L(MM)

фD2(MM)

BN-U-500

500

400W

6.5, 8, 8.5, 9,10,11,12mm

108mm

1.D1=6.5mm
2.D1=6.5mm
3.D1= 8mm
4.D1=8.5mm
5.D1=9mm
6.D1=10mm
7.D1=11mm
8.D1=12mm

D2=8mm
     D2=8mm
     D2=9.5mm
     D2=9.5mm
     D2=10mm
     D2 =16mm
     D2=16mm
     D2=16mm

BN-U-800

800

640W

6.5, 8, 8.5, 9,10,11,12mm

108mm

BN-U-1000

1000

800W

6.5, 8, 8.5, 9,10,11,12mm

108mm

BN-U-1200

1200

900W

8, 8.5, 9,10,11,12mm

108mm

BN-U-1500

1500

1100W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2000

2000

1400W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2500

2500

1600W

8, 8.5, 9,10,11,12mm

108mm

BN-U-3000

3000

2100W

8, 8.5, 9,10,11,12mm

108mm


TYPE: BN-Fin


The stainless steel slice will be coil on the heating element. The high of Fin will be 3mm or 5mm.

Material of tube:

AISI304 321,316 Incoloy840

Voltage:

110V-480V

Diameter of tube

6.5, 8, 8.5, 9,10, 11,12mm

Power

200W-3500W

Diameter of Fine

10mm,Diameter of tube+6mm or 10mm


Some Type of BN-U

Type No.

A(MM)

Power(W)

ф D1(MM)

L(MM)

фD2(MM)

BN-U-500

500

400W

6.5, 8, 8.5, 9,10,11,12mm

108mm

1.D1=6.5mm
2.D1=6.5mm
3.D1= 8mm
4.D1=8.5mm
5.D1=9mm
6.D1=10mm
7.D1=11mm
8.D1=12mm

D2=8mm
D2=8mm
D2=9.5mm
D2=9.5mm
D2=10mm
D2 =16mm
D2=16mm
D2=16mm

BN-U-800

800

640W

6.5, 8, 8.5, 9,10,11,12mm

108mm

BN-U-1000

1000

800W

6.5, 8, 8.5, 9,10,11,12mm

108mm

BN-U-1200

1200

900W

8, 8.5, 9,10,11,12mm

108mm

BN-U-1500

1500

1100W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2000

2000

1400W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2500

2500

1600W

8, 8.5, 9,10,11,12mm

108mm

BN-U-2800

2800

1900W

8, 8.5, 9,10,11,12mm

108mm

BN-U-3000

3000

2100W

8, 8.5, 9,10,11,12mm

108mm


Defrost heating element for freezer

TYPE: BN-U-F



Material of tube:

AISI304 321,316 Incoloy840

Voltage:

110V-480V

Diameter of tube

6.5, 8, 8.5, 9,10, 11,12mm

Power

200W-3500W


Some Type of BN-B-F

Type No.

A(MM)

Inch

Voltage

Power(W)

ф D1(MM)

L(MM)

фD2(MM)

BN-U-F-305

305

12”

110V

250W

6.5mm

250mm



D2=9.5mm

305

12”

220V

250W

6.5mm

250mm

BN-U-F-355

355

14”

110V

280W

6.5mm

250mm

355

14”

220V

280W

6.5mm

250mm

BN-U-F-406

406

16”

110V

300W

6.5mm

250mm

406

16”

220V

300W

6.5mm

250mm

BN-U-F-457

457

18”

110V

335W

6.5mm

250mm

457

18”

220V

335W

6.5mm

250mm

BN-U-F-508

508

20”

110V

375W

6.5mm

250mm

508

20”

220V

375W

6.5mm

250mm

BN-U-F-533

533

21”

110V

395W

6.5mm

250mm

533

21”

220V

395W

6.5mm

250mm

BN-U-F-558

558

22”

110V

415W

6.5mm

250mm

558

22”

220V

415W

6.5mm

250mm

BN-U-F-584

584

23”

110V

455W

6.5mm

250mm

584

23”

220V

455W

6.5mm

250mm

BN-U-F-610

610

24”

110V

475W

6.5mm

250mm

610

24”

220V

475W

6.5mm

250mm

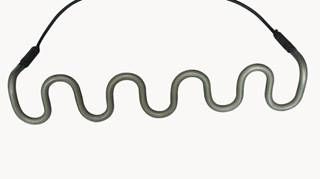

Defrost heating element for freezer

TYPE: BN-0THER


BN-O-01


BN-O-02


     BN-O-03

     BN-O-04

     BN-O-05


      BN-O-06

image043(001).jpg      BN-O-07

     BN-O-08

Material of tube:

AISI304 321,316 Incoloy840,800

Voltage:

110V, 120V 220V 230V 240V 380V 415V 440V

Power

200W-2000W

Diameter of tube

6.5mm,8mm, 8.5mm 9mm,10mm 11mm 12mm

Remark: Generally Speaking, we will manufacture it according to your require. If you have sample or drawing, the products Can be customized


Related Products
Feedback

Copyright © Shengzhou Beno Electric Appliance Co.,Ltd All Rights Reserved.Tel: +86-575-83703068
