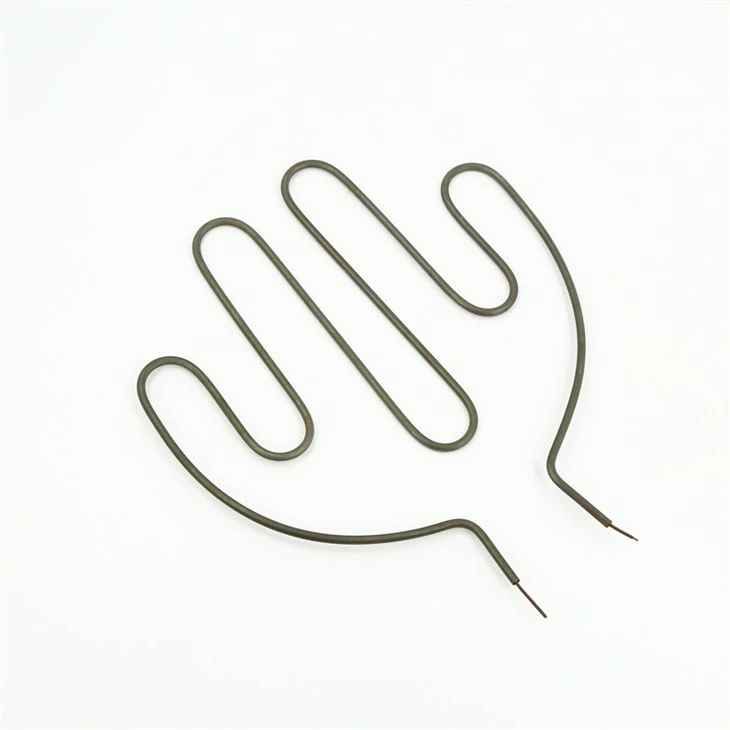

Microwave Electric Oven Toaster SS304 Electric Grill Heating Elements

Microwave Electric Oven Toaster SS304 Electric Grill Heating Elements

Electric oven toaster SS304 electric grill heating elements Heating element for grill is used for electric oven and similar home products. Heating element are produced using Incoloy840, stainless steel 304, 321, 310S, sheath materials and also there is huge variety of selection of termination...
Product description

Electric oven toaster SS304 electric grill heating elements


Heating element for grill is used for electric oven and similar home products.

Heating element are produced using Incoloy840, stainless steel 304, 321, 310S, sheath materials

and also there is huge variety of selection of termination styles available.Oven heating element are custom designed in a various shapes to address client’s requirements.


1. We offer standard as well as customized models

2. We offer different tube diameters like 6.5 mm, 8 mm,  8.5mm,9mm,10.6mm,11mm& 12mm, 14mm,16mm and so on.

3. We offer different sheath materials. It can be availed in different materials like Incoloy 840, SS 304, SS 321, SS 316,

4. Ambient temperature: -60°C ~ +800°C

5. High- voltage in Test : 16,00V/ 5S

6. Firmness of connection end: ≥50N

7. Protective oxide coated element wire for long-term heater life

8. Can be manufactured to proper length


1.HI-POT TEST: 1600V/S on normal temperature

2.Insulation resistance:500MΩ

3.Leakage current to be 0.75ma max While energized at rated voltage

4.Power tolerance:+5%,-10%

5.Voltage:12V-440V

6.Diameter range:4.5mm to 20mm

7.Heating resistance wire:0Cr25Al5,Cr20Ni80 or as custom'es requirement

8.Air tubular heater wattage : ≥ 1w-5w/cm2


Diameter of tube

6.5mm

8.0mm

8.5mm

9.0mm

10mm

11mm

12mm

14mm

16mm

Material

AISI304*

AISI321*

AISI316

AISI310S

INCOLOY840

Length of tube

From 200mm to 6500mm, The length will be manufacture it according to custom’s require

Length of wire

From 200mm to 2000mm, The length will be manufacture it according to custom’s require

Color

Color of tube is yellowish*or Dark-green or Black


We can send the sample to you for free. you can test our quality!!
