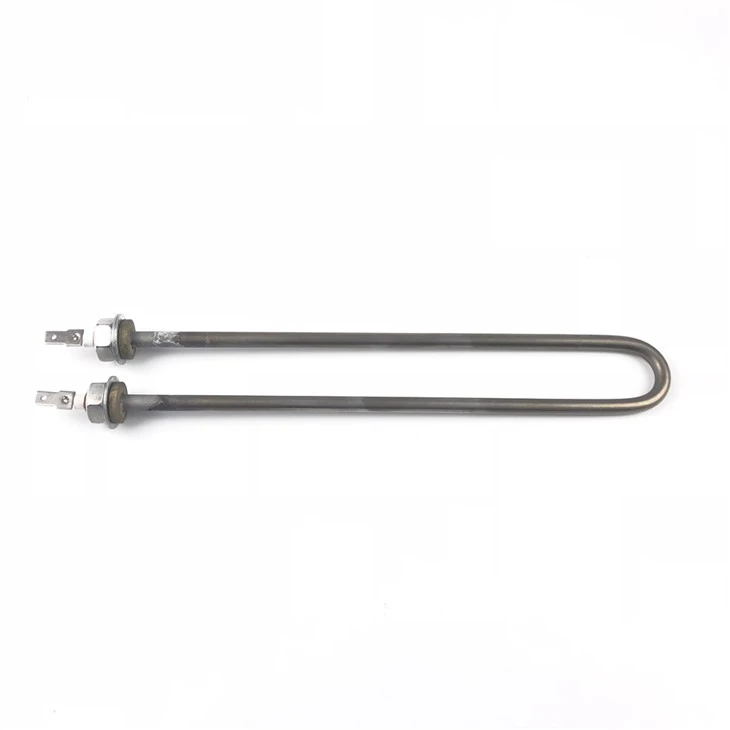

Immersion Sauna Tubular Stainless Steel Heater Heating Tube Element

Immersion Sauna Tubular Stainless Steel Heater Heating Tube Element

Immersion heater element for Sauna is used for Sauna, Steam table,water heater and similar home products. Stainless steel water heater heating element are widely used to heat liquids as a reliable, economical, and versatile way, which can be used in a large variety of applications, including...
Product description


Immersion heater element for Sauna is used for Sauna, Steam table,water heater and similar home products.

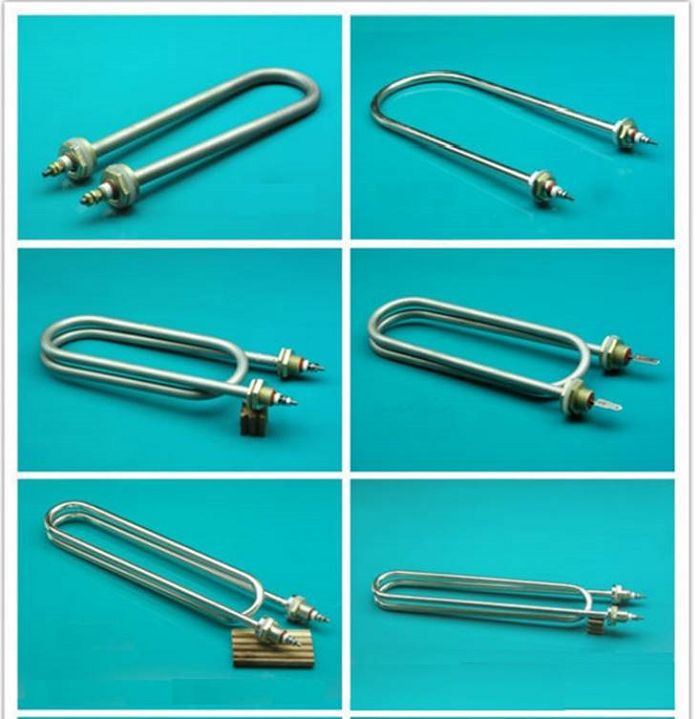

Stainless steel water heater heating element are widely used to heat liquids as a reliable, economical, and versatile way, which can be used in a large variety of applications, including those with size restrictions for small spaces. They allow for even heat distribution as well as a high dielectric strength. Tubular heaters can be formed into a variety of patterns.

1.We offer standard as well as customized models

2.We offer different tube diameters like 6.5 mm, 8 mm,  8.5mm,9mm,11mm,12mm, 14mm,16mm.

3.We offer different sheath materials. It can be availed in different materials like Incoloy 840, SS 304, SS 321, SS 316,

4.High- voltage in Test : 16,00V/ 5S

5.Protective oxide coated element wire for long-term heater life

6.Can be manufactured to proper length

7.Insulation resistance:500MΩ

8.Leakage current to be 0.75ma max While energized at rated voltage

9.Power tolerance:+5%,-10%

10.Voltage:12V-440V

11.Heating resistance wire:0Cr25Al5,Cr20Ni80 or as custom'es requirement




Material of tube:

SS321,SS304,SS316

Voltage:

110V, 208V,220V- 240V

Diameter of tube

8mm, 10mm

Power

1000W-7000W


Some Type of BN-M-STL

Type No.

Voltage

Power(W)

Material of tube

Remark

BNL-M-STL-1000

110V-240V

1000W

Stainless steel

We can manufacture it according to your picture or drawing

BNL-M-STL-1500

110V-240V

1500W

Stainless steel

BNL-M-STL-2000

110V-240V

2000W

Stainless steel

BNL-M-STL-2500

110V-240V

2500W

Stainless steel

BNL-M-STL-3000

110V-240V

3000W

Stainless steel

BNL-M-STL-3500

110V-240V

3500W

Stainless steel

BNL-M-STL-4000

110V-240V

4000W

Stainless steel

BNL-M-STL-4500

110V-240V

4500W

Stainless steel

BNL-M-STL-5000

110V-240V

5000W

Stainless steel

BNL-M-STL-6000

110V-240V

6000W

Stainless steel

BNL-M-STL-7000

110V-240V

7000W

Stainless steel

Remark: Generally Speaking, we will manufacture it according to your require. If you have sample or drawing, the products Can be customized




We can send the sample to you for free. you can test our quality
