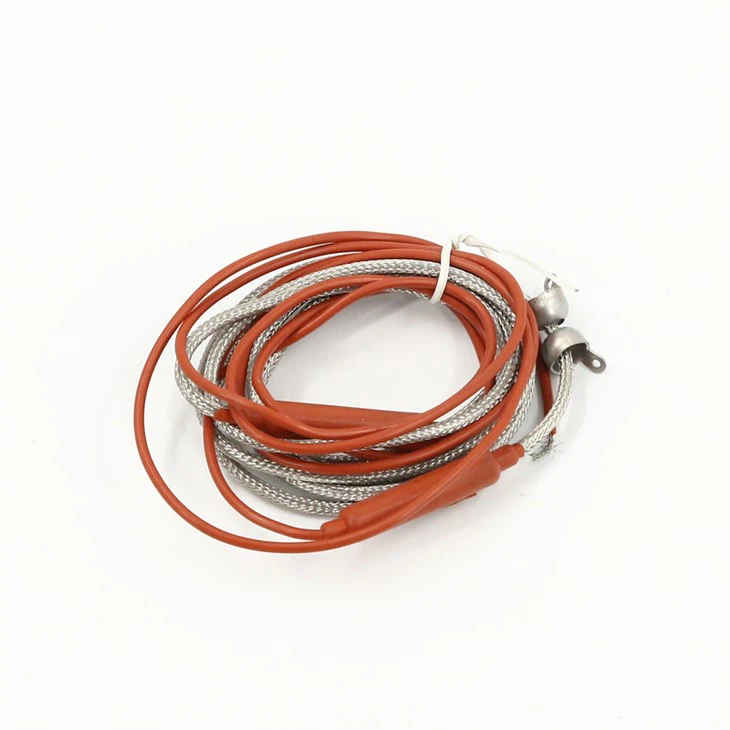

Silicone Rubber Braided Glass Fiber Carbon Fiber PVC Heating Wire Cable

Silicone Rubber Braided Glass Fiber Carbon Fiber PVC Heating Wire Cable

Electric Heating Wire Cr2ONi8O wire to be winded on a glass fiber to be covered with silicone rubber used as heat conductor,to be wrapped with stainless steel woven sheath,ends of heating wire,lead wire to be connected with. 1.Defrosting hearers for refrigerators, deep freezers, ice cabinets,...
Product description




Electric Heating Wire

Cr2ONi8O wire to be winded on a glass fiber to be covered with silicone rubber used as heat conductor,to be wrapped with stainless steel woven sheath,ends of heating wire,lead wire to be connected with.

1.Defrosting hearers for refrigerators, deep freezers, ice cabinets, automatic vending machines and ice-making machines etc

2.Heat Preservation and freezing resistance in thermal pads, thermal blankets, pipes etc Defrosting, dehumidification and heating in air conditioning machines, compressor, photocopiers & other applications.

3.Used in the rice cooker, the towel cabinet, the massor, seating washer, keeping toilet seats warm

4.Medical care


Technical data

1.Insulation resistance:after putting the whole tube in water for 24 hours,insulation resistance≥100MΩ.

2.Dielectric test of AC1800V/1min,no flashover happened.

3.Leakage current in working temperature≤0.1mA.

4.Power deviation:±7%at rated voltage.

Down-lead intension:After the test of 30N pull,the down-lead part does not be moved or ruptured.


No.

Specificaiton

Details

1.

Name

Heating cable, Heating wire

2.

Heating Conductor

Nichrome/copper alloy/stainless steel

3.

Inside Structure

Helix

4.

Inside Material

Fiberglass/Polyester

5.

Voltage

5V/ 7.4V/ 12V/ 24V/ 36V/ 48V/ 60V/ 72V/ 110V/ 220V

6.

Resistance

0.8-4000 Ohms/M

7.

Power

<50W/M

8.

Outside Diameter

1-5.5MM

9.

Insulating layer

PVC/Silicone

10.

Bear Temperature

PVC:105℃
Silicone:230℃

11.

Permissible Voltage

380V

12.

Lifespan

PVC cable is 3-4years
Silicone cable is 5-6years

13.

Delivery time

10-15days

14

Knit Material

Stainless steel wire, Copper wire or Carbon fiber









Used the silicon rubber


HEAT SHRINKABLE TUBES


PVC tube


Put the copper wire into the electric heating wire




Trade show

Pls advise below details when inquire

(1).Type of Heater

(2).Wattage and Voltage

(3).Dimension of the tube and APPROX length of the heating tube

(4).Drawing required for special configuration

(5).Working environment


As a trustworthy manufacture,we can assure you for:

Consistent&Uniform quality of products throughout the Merchandise.

Shipments well within the time agreed between us.

Most competitive prices and assuring our prooducts quality.


Our belief:

Beno company is a professional Chinese heating element manufacture.

Our focus is on quality control,making excellent before and after-sales service and enlarging product

service and enlarging product series to meet clients'requirements.

Welcome to contact with us,we are always free to answer you question.


We sincere hope to set up good businss relationships with you to create a bright future!

We can send the sample to you for free. you can test our quality!
